Wanted to update the maps in my car’s navigation system. To Audi’s credit they provide twice-yearly upgrades via a variety of methods, some free. (Sadly they don’t seem to have any way to update the MMI firmware though). The map updates are badly documented, so here’s the details. First, the easy options that cost money. This website uses cookies. We use cookies to make our website work better and improve your online experience. By continuing to browse this website you accept the use of cookies, read more about cookies and our policy. A map update for your vehicle's GPS navigation system provides many benefits. A map update for your vehicle's GPS navigation system provides many benefits. Learn more and be sure to visit http.

How Do I Update The Navigation System In My Audi A6

Wanted to update the maps in my car’s navigation system. To Audi’s credit they provide twice-yearly upgrades via a variety of methods, some free. (Sadly they don’t seem to have any way to update the MMI firmware though). The map updates are badly documented, so here’s the details.

  • Manufacturer-approved updates. HERE works directly with automotive manufacturers to ensure that each map update integrates seamlessly with your vehicle’s navigation system. Designed to increase efficiency and optimize your system’s performance, all map updates include new and modified roads, points of interest, addresses, signage and more.
  • Audi A4 A5 Q5 Q7- 3rd Generation MMI Navigation. Unlock VW and AUDI features easily! OBDeleven Pro Review; VCDS alternative - Netcruzer TECH - Duration: 22:26. Netcruzer RC TECH CARS 1,773,404 views.

First, the easy options that cost money. You can pay the dealer to do it. Or you can pay for the Audi Connect service (the cellular data for your car) and updates come over the air.

Now the free manual option. Discussed here, also see this video. It’s not hard or scary, the only real nuisance is their Java download program. Detailed walkthrough:

Downloading update

  1. Log in to myAudi.
  2. Click the “Audi connect services” button. I had a lot of trouble with their SSO redirects, maybe related to my ad blockers and privacy stuff.
  3. On the Audi Connect website go to Services / Map Update and select “Complete Package”, then click the “Prepare Package” button.
  4. Download the map update! Ha ha just kidding. Download a tiny JNLP file for Java Web Start to run a download program that Audi requires you use.
  5. Run the JNLP program. I managed finally by enabling it in the Java control panel (Security / Enable Java content for browser and Web Start applications) and then running “javaws foo.jnlp” from a command line. Perhaps there’s an easier way.
  6. Wait for the download. The full US maps were about 11GB.
  7. The download program creates four files. Two small files: one named metainfo2.txt and one named randomhexstring.md5. And two directories with the data: Mib1 and Mib2. Apparently all 4 are necessary for an update.
  8. Copy the 4 to the root directory of a FAT32 system on an SD card. (A USB drive will work as well.)
How Do I Update My Audi Navigation System

Installing update

  1. Go to the car and put the SD card in one of the slots for the MMI. (I used SD2).
  2. Turn the MMI on. (I do this by turning the radio on, not the ignition).
  3. Go to Settings / System Maintenance / Version info to check the versions of things on your system already. This shows the MMI software version (0694 for me) and some basic navigation database info; you have to navigate to the Navigation database submenu to see all the databases you have. My car had about 20 2016/2017 databases for North America, plus a single 2017/2018 for USA, Region 4 (California, where I live). That was an OTA update I got right after buying the car.

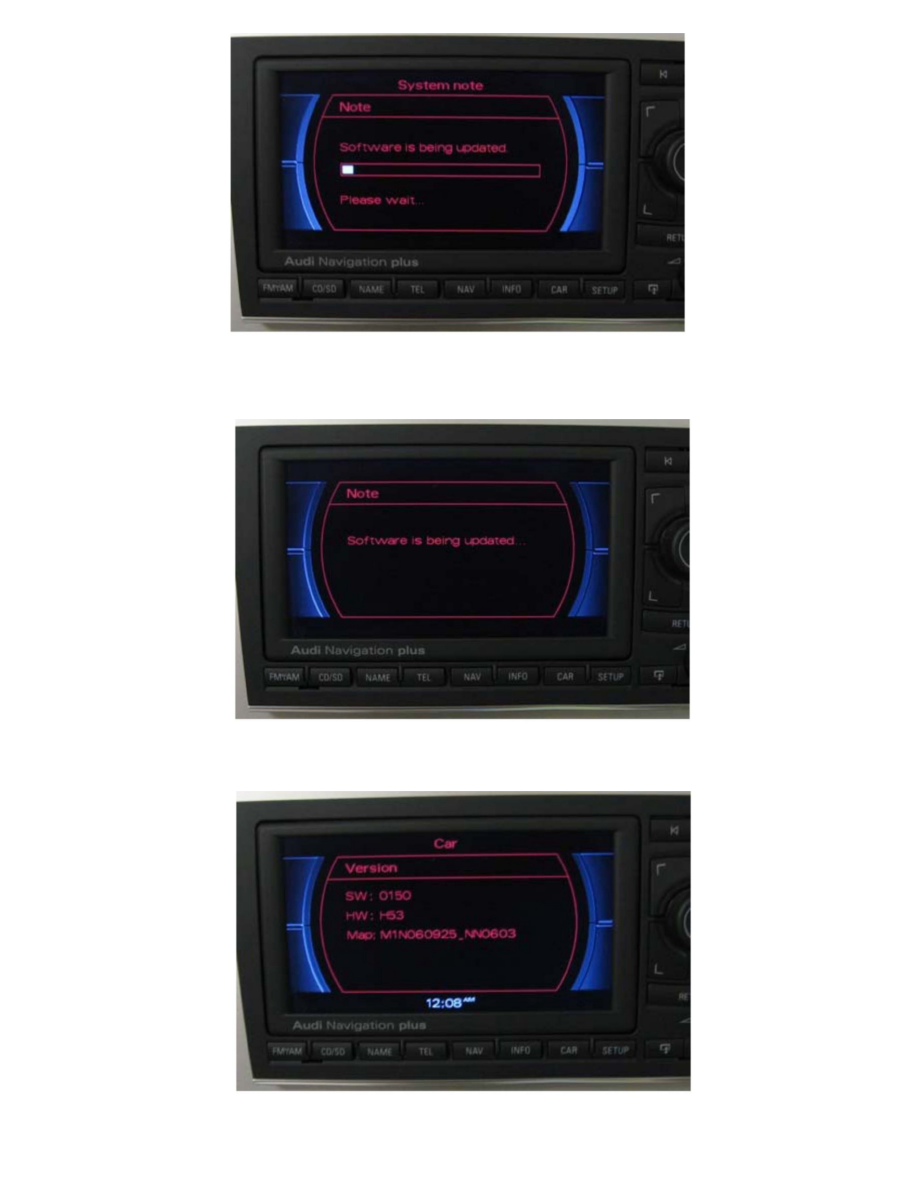

  4. Go to Audi Connect and select “Software update”. Select the source you plugged in (SD2 for me) and it begins. It takes awhile, about 30 minutes for me.
  5. Leave the car and close the door. Lights will turn off but the MMI will continue to be running with the screen lit and updating. Eventually the screen will close and it seems to keep updating. Hopefully none of this drains the battery too much. The update is automatic and requires no extra input
  6. Once it finishes you may have to enter a single click to acknowledge the update.
  7. Go back to Version info to check the version numbers. Now all my car’s maps are labelled “2018”. Success!

Of course I’m curious about the contents of the update files but couldn’t find a lot of info. Mib1 has a directory named “Eggnog” and Mib2 has “Truffles”; internal product names? Mib1’s datafiles seem to be named “.psf” and Linux guesses some (but not all) are FoxPro FPT files, which seems plausible. Mib2 is mostly compressed data I couldn’t figure out, which some small SQLite tables without much interesting it. Probably all proprietary data, of course, and if they’re smart it’s encrypted too to prevent casual snoops like me from lifting all the data out.

Shame Audi doesn’t also let you upgrade MMI firmware. Mine has a bug where it’s limited to indexing 10,000 music files. Admittedly that’s a lot of music, but it’s a nuisance if you just want to copy all the music you own into the car. Static array sizes: not even once!
